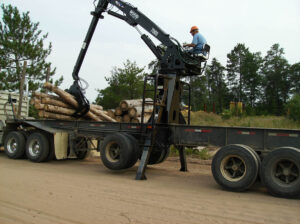

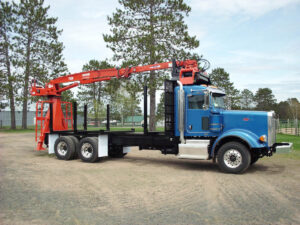

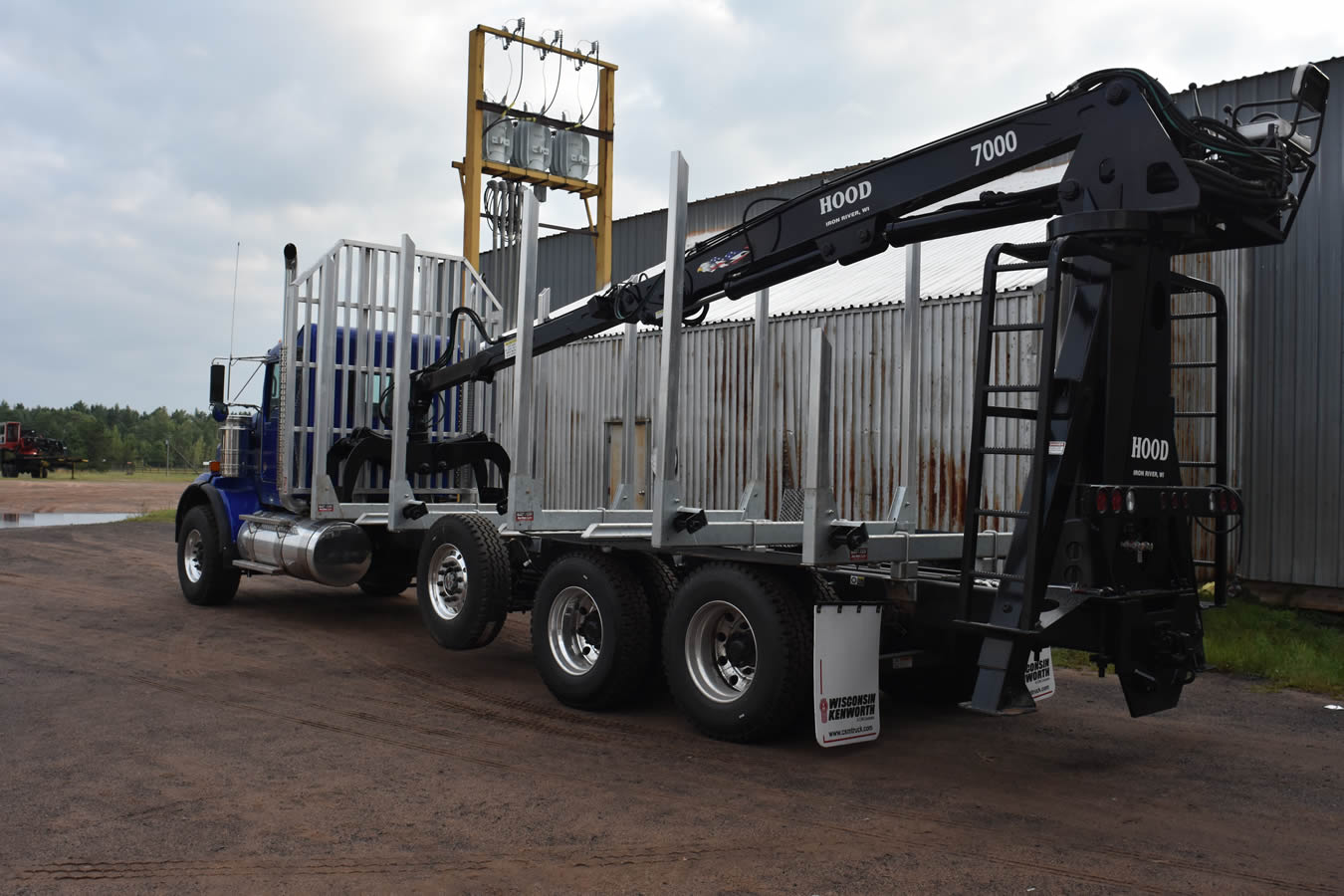

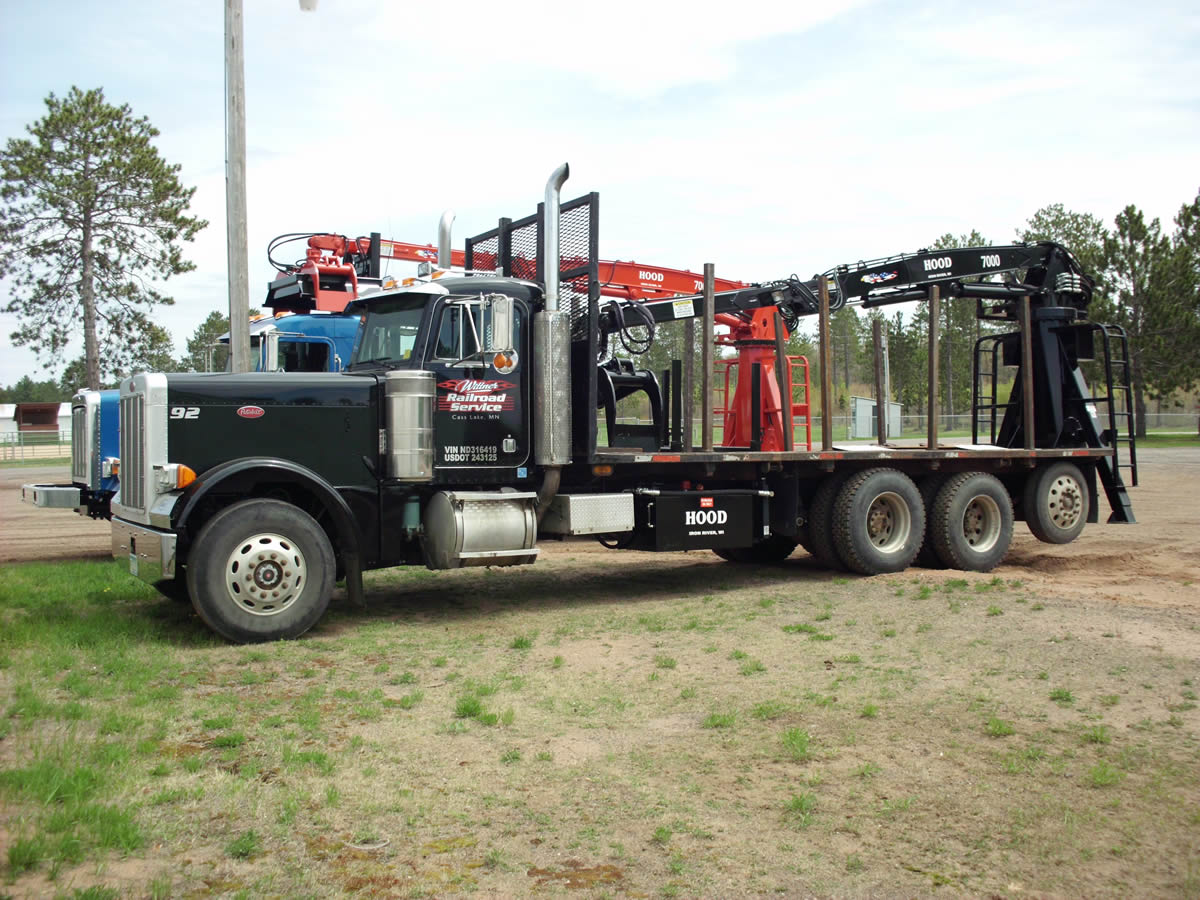

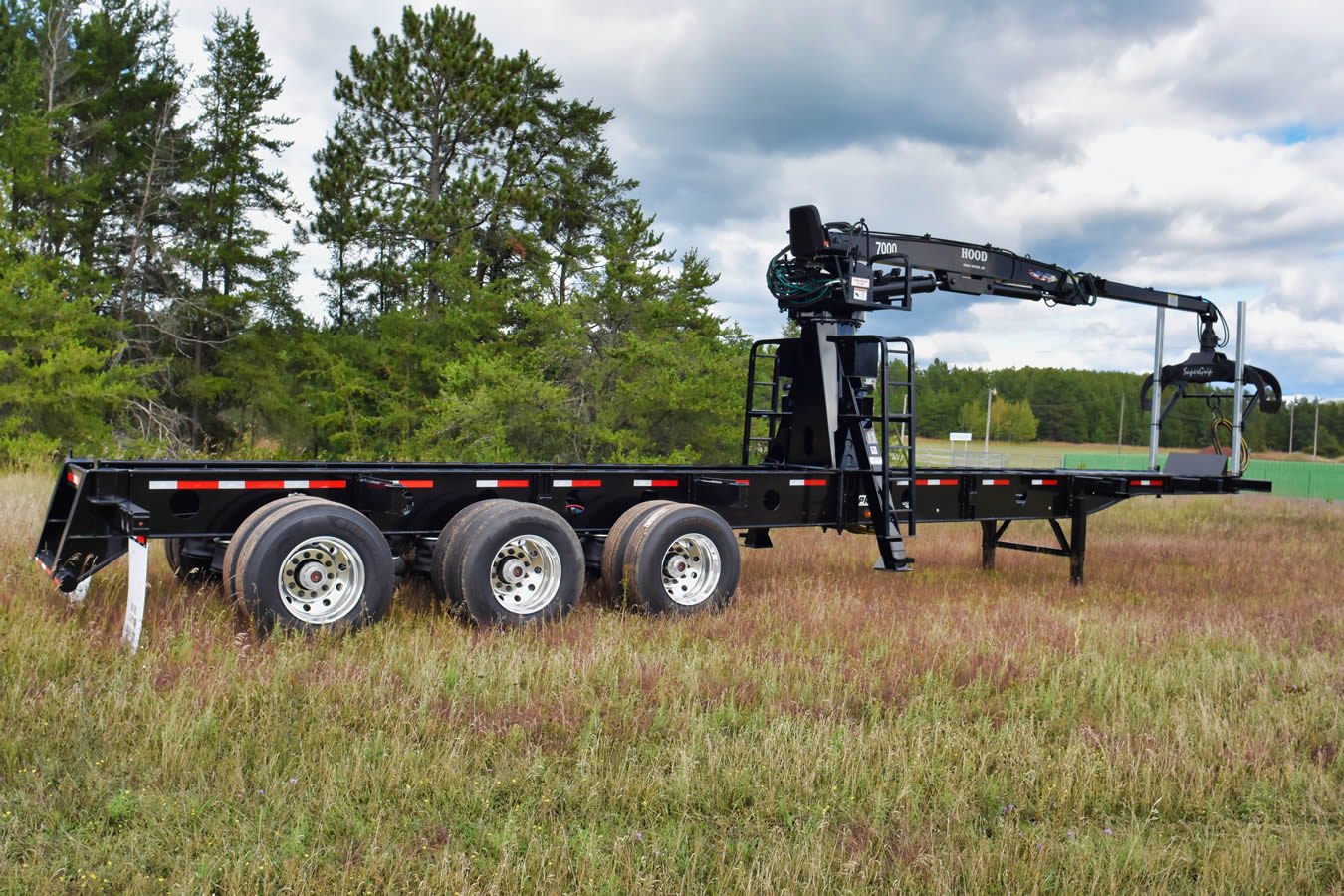

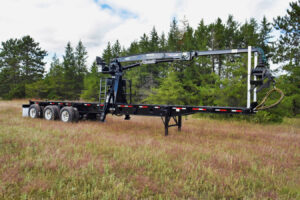

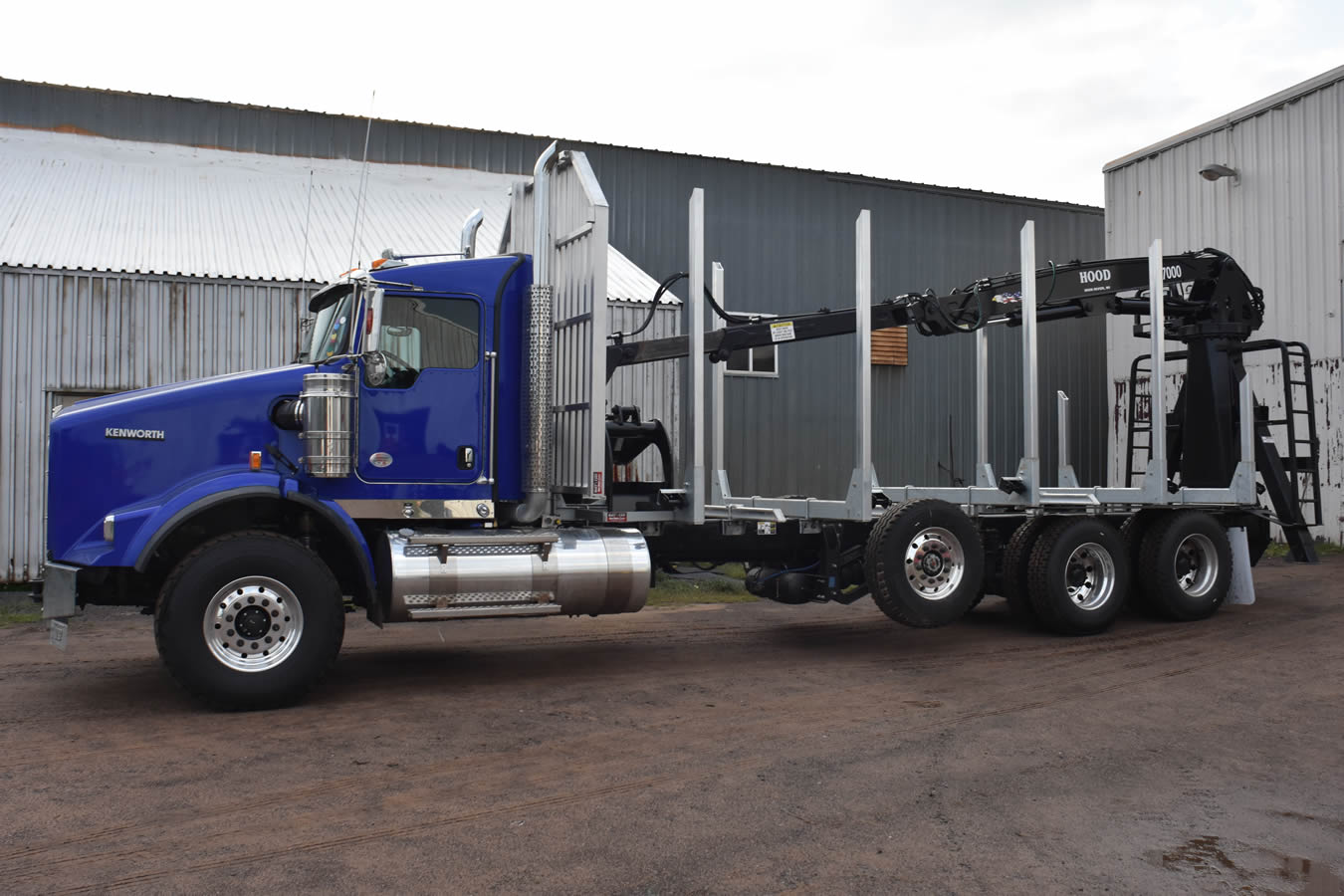

LIFT CAPACITY

7,871 pounds @ 10 feet radius

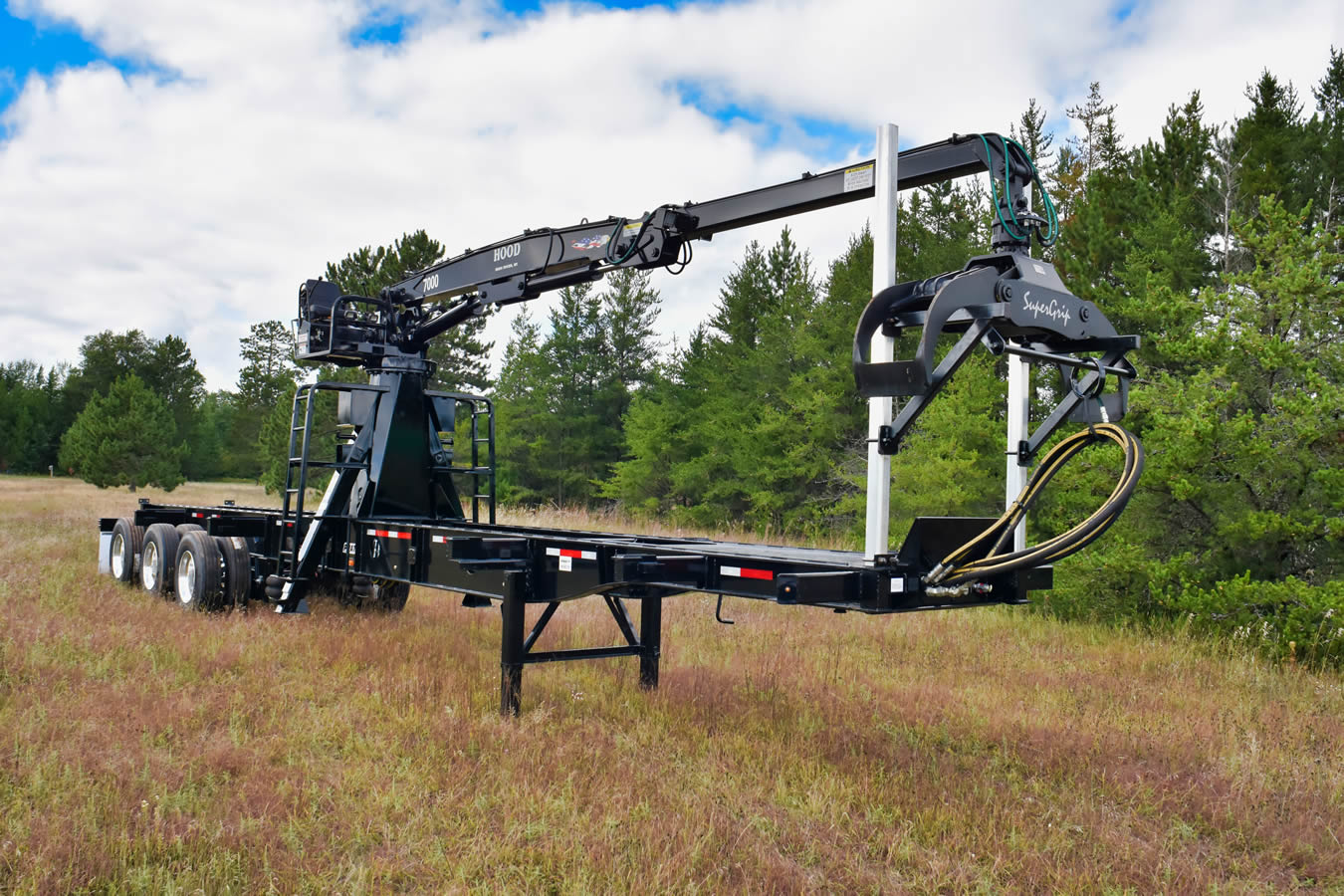

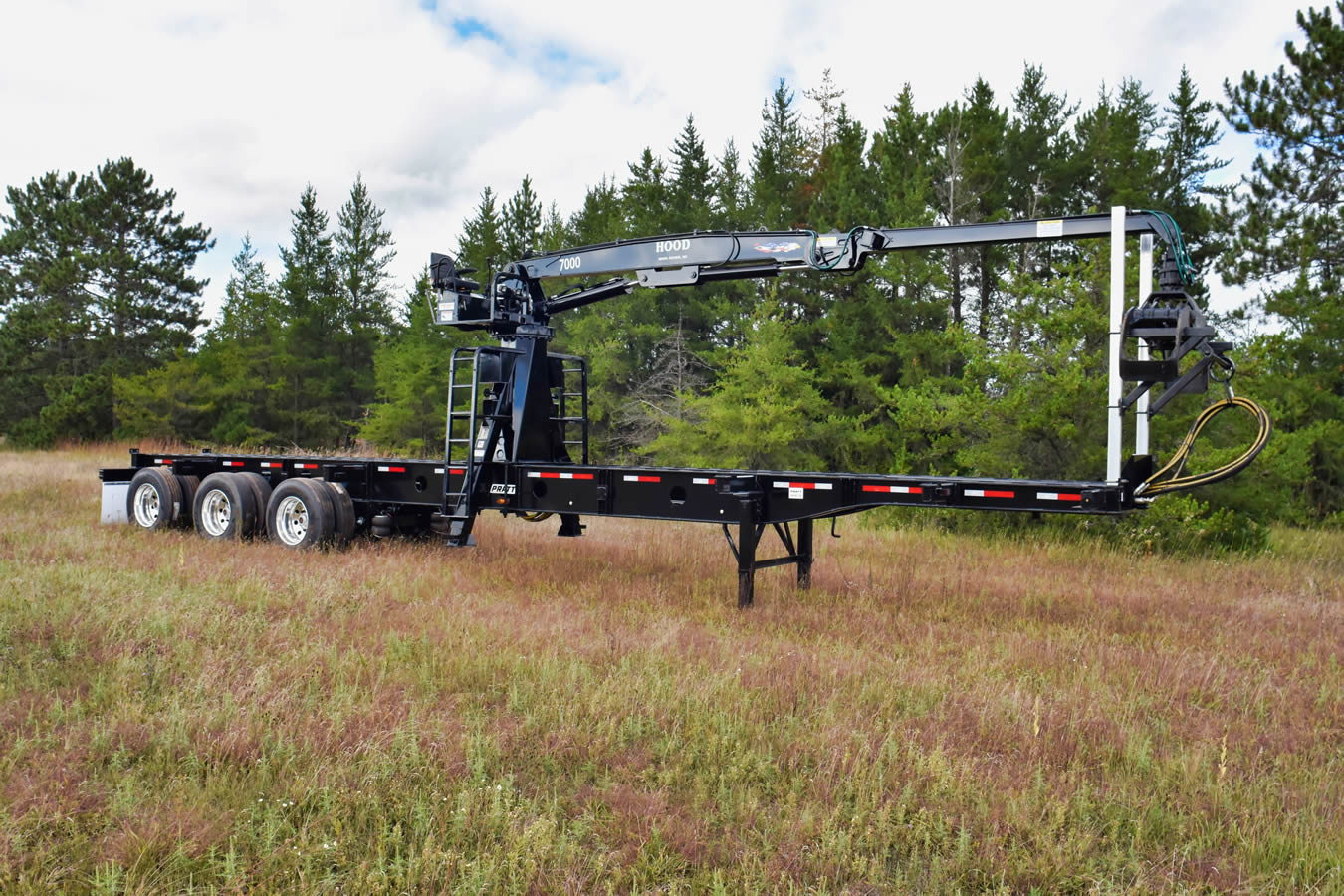

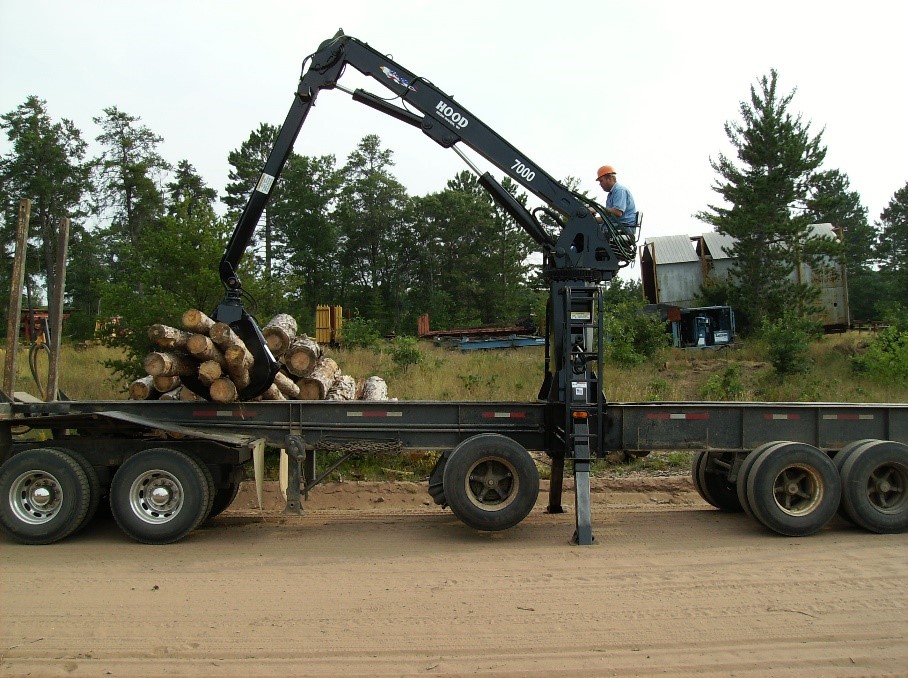

BOOMS

Standard boom length 22 feet. Optional boom lengths available up to 27 feet

48” extend-o boom option available

Main and knuckle boom sections are fabricated high tensile steel and reinforced at all stress points

2-1/2” diameter pivot pins made from high strength yield steel

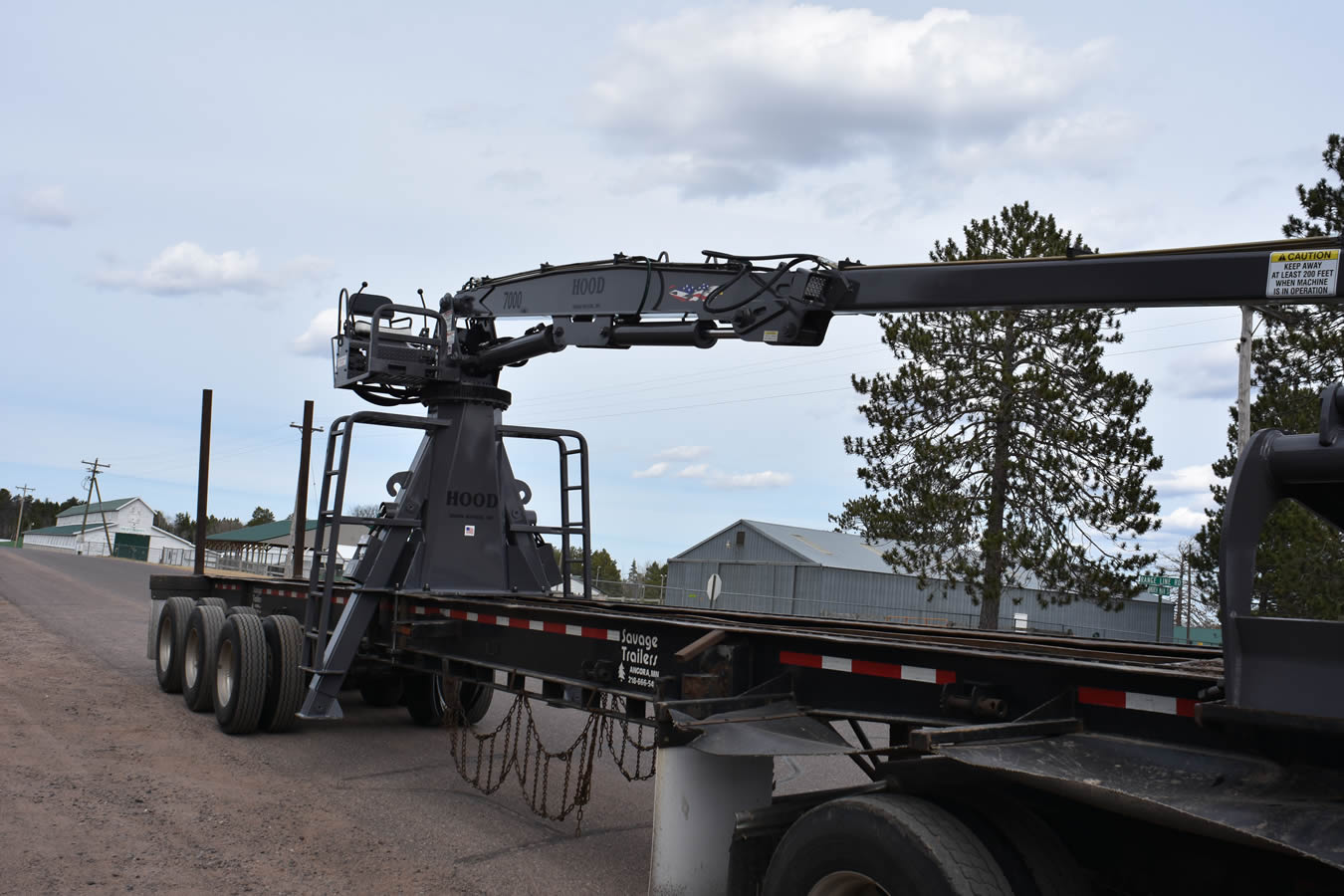

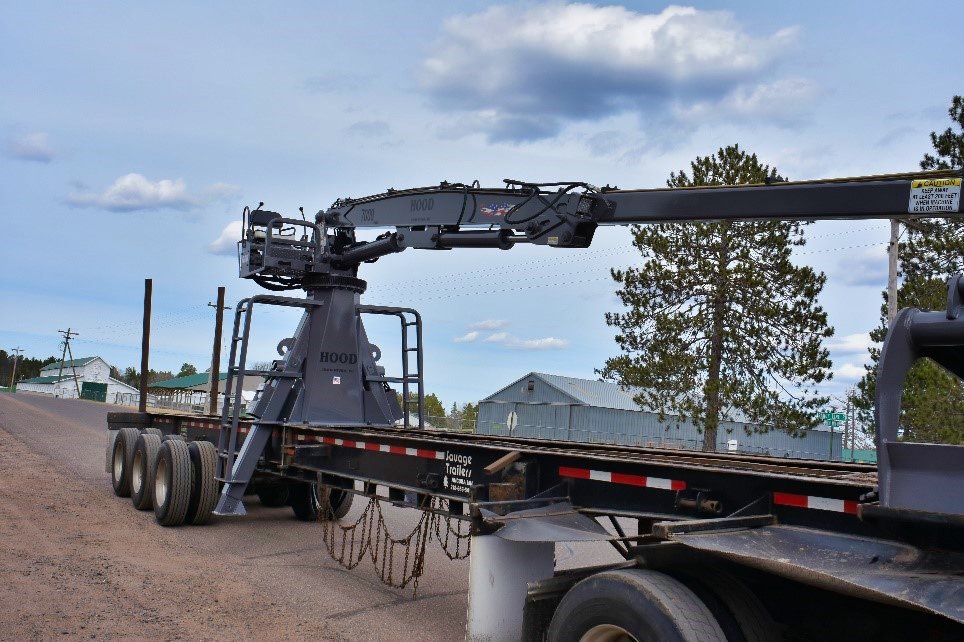

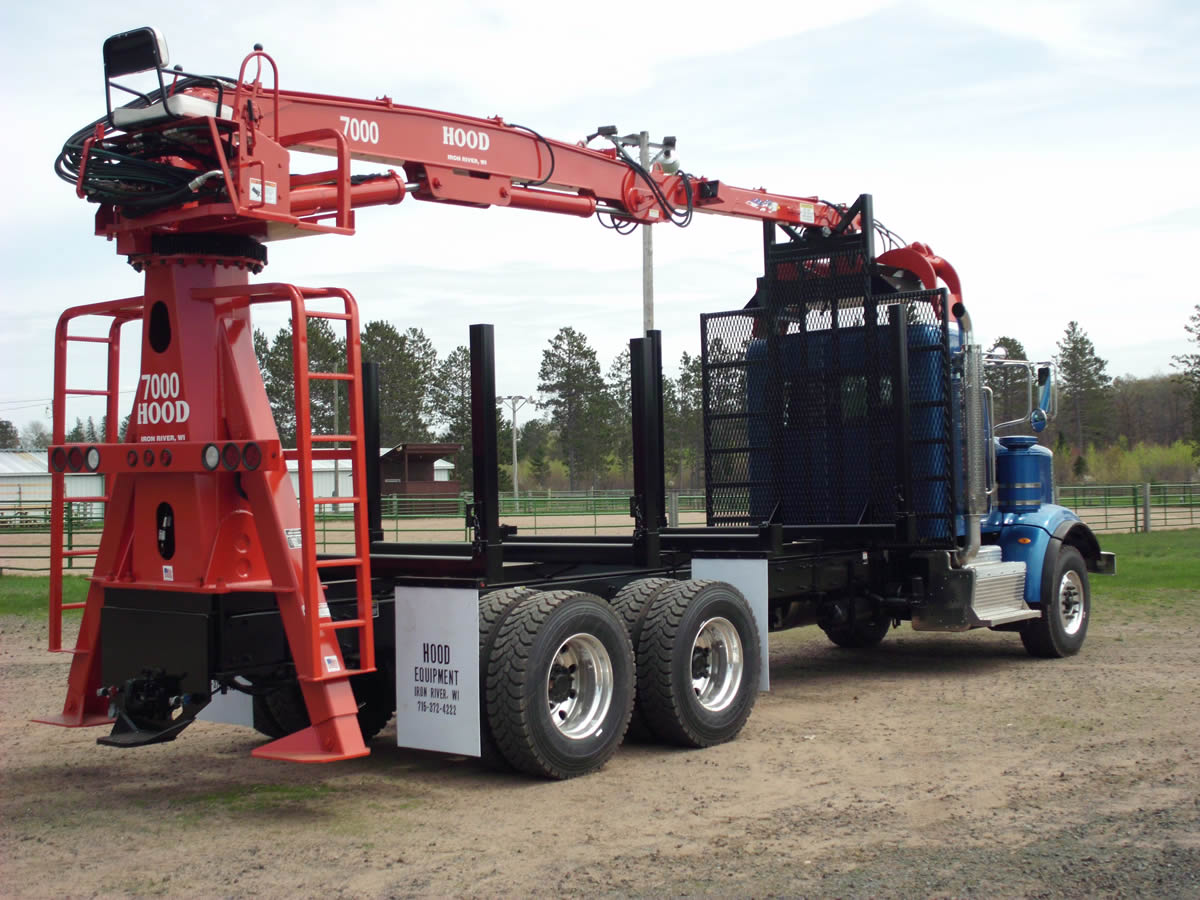

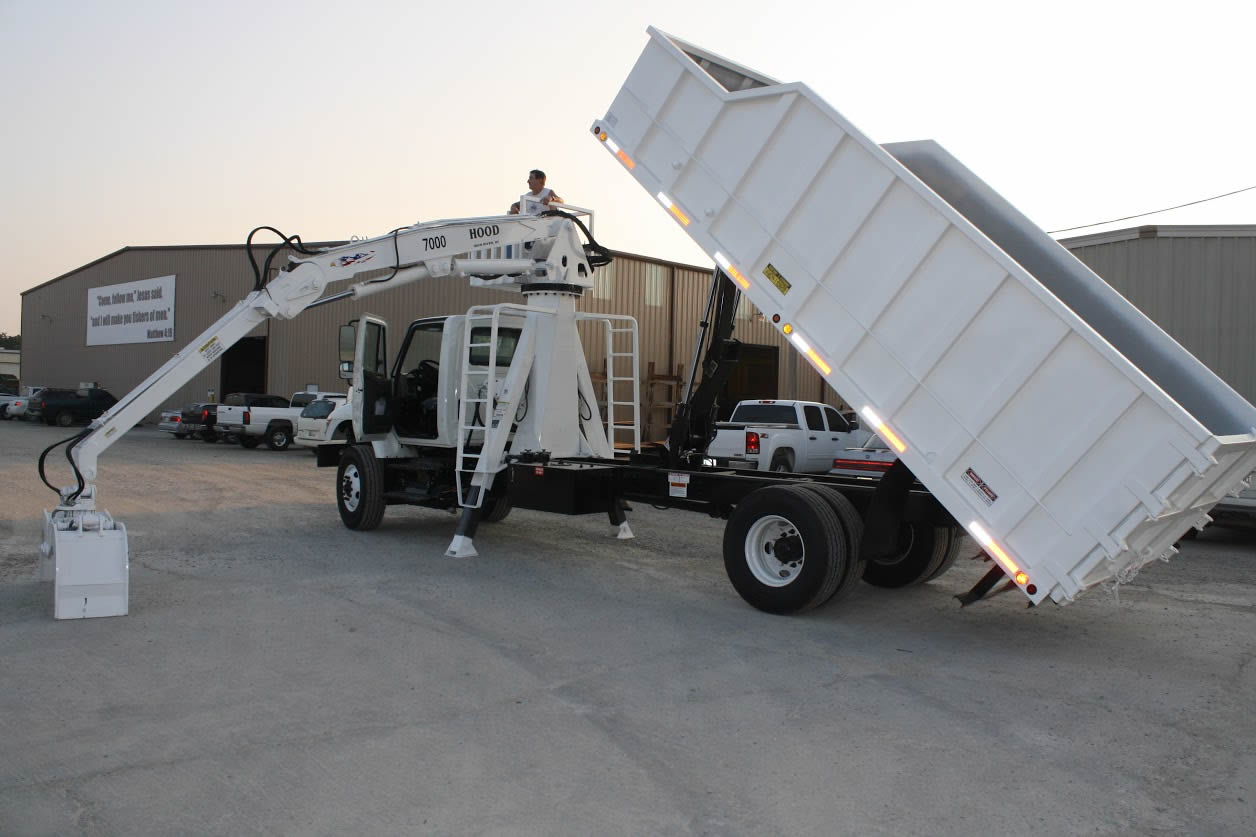

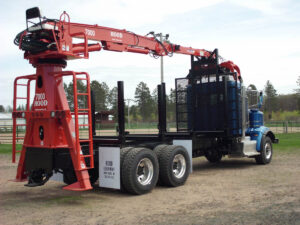

STABILIZERS

12” square pivoting pad size

3” bore x 40” stroke x 2” rod cylinders

Individually controlled from operators’ seat with a 10’ – 6” wide spread at ground level

Automatic cylinder load locks for maximizing stability on uneven terrain



HYDRAULIC SYSTEM

Main cylinder - 6" bore x 36" stroke x 2-1/2" rod fabricated heavy wall tubing barrel

Knuckle cylinder - 5" bore x 30" stroke x 2-1/2" rod fabricated heavy wall tubing barrel

Joystick operated linkage controls

Tandem hydraulic circuits operating at 2,250 PSI allowing simultaneous operations

Double and triple section gear or vane pumps providing up to 31 + 31 + 20 GPM @ 1500 RPM

40 gallon loader frame mounted or truck mounted hydraulic reservoir with 10 micron return line filters

4-wire reinforced braided hoses in all pressure applications

High pressure tubing used in non-flex areas



SWING SYSTEM

630 degrees rotation

Hydraulic motor with fail safe brake powered planetary gearbox driving external tooth 28” turntable bearing



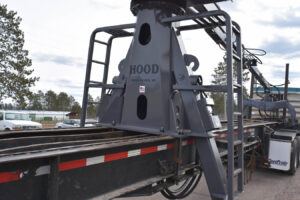

FRAME STRUCTURE

Fabricated high-tensile steel octagon construction.

Operator’s platform open grate steel flooring and leg guard for safety

OPTIONS

Telescoping extend-o boom with separate valve and foot operator

Fold out stabilizers with a 14’ wide spread at ground level

Continuous rotation 10 port pressure manifold

Hydraulic joystick servo system controls

Hydraulic oil cooler

Hydraulic oil tank heater

Light kits and over the road travel light bars

Ladder mounted chain boxes

Full range of attachments including continuous grapples



WEIGHT

5,900 pounds with hydraulic oil and less attachments
